Air quality is vital not just for your health but also for the condition of your home. Bathrooms, in particular, need a proper ventilation system to ensure they remain free from harmful moisture and mold buildup. One of the key elements of any bathroom's ventilation system is the bathroom exhaust fan.

A bathroom vent fan helps to evaporate moisture, remove unpleasant odors, and keep the air circulating. If you experience inadequate ventilation in your bathroom or a noisy exhaust fan, replacing it could solve the problem.

While replacing a bathroom exhaust fan may seem challenging, this project can breathe new life into your ventilation system. Here are the steps and tools you need to replace a bathroom exhaust fan successfully.

1. Choose the Perfect Fan for Your Needs

The first step to replacing your old exhaust fan is to measure the size of the existing fan. Make sure your new fan size fits your bathroom space. Exhaust fans are categorized by their cubic feet per minute (CFM) rating, this indicates how much air they can move freely in your bathroom. A standard rule of thumb is having one CFM per square foot of bathroom space. For instance, if your bathroom is 75 square feet, you will need a fan rating of 75 CFM. It will enable you to choose the suitable fan size that provides proper ventilation. Remember that bigger fans move more air and are better suited to larger bathrooms. Additionally, check the noise level of your chosen fan as well. Many brands on the market feature quieter fans and are barely noticeable.

2. Confirm If a Permit Is Required

While most small-scale bathroom exhaust fan replacements may not require a building permit, it is always good to check with your local building codes. This can quickly be done by contacting your local city or county government and asking about the rules and regulations surrounding DIY electrical work. These steps are essential, as failing could violate your homeowner's policy.

3. Gather Necessary Tools

Having the right tools for the job is vital to successful replacement. The basic tools and materials needed to complete the job include:

  • Screwdriver
  • Putty knife
  • Measuring tape
  • Drill and bits
  • Goggles and gloves
  • Utility knife
  • Circuit tester
  • A respirator
  • Silicone caulk
  • New vent fan
  • HVAC tape (if running ducting)
  • Wire connectors

Depending on the kind of fan and how accessible it is to you, additional tools may be needed.

4. Turn Off the Power

Before starting any electrical work, turning off the power supply to your bathroom is essential. Start by flipping the switch on your main electrical panel that controls your bathroom's electrical supply. Test the supply with a voltage tester to ensure no power flows to your bathroom. If you are not self-assured in dealing with electrical wiring and circuitry, enlisting a licensed electrician's services is your best option. To ensure safety, leave a message on the electrical panel instructing others not to turn on the power.

5. Locate the Vent Point

Before replacing the exhaust fan, you need to locate the vent point. The vent point is where the exhaust fan vents outside the house or building. Find the vent point to ensure the new fan is correctly vented. Most exhaust fans have a duct attached to them, leading to an outside wall or the attic. Locate where it vents and check that the vent is clear. If the vent point is obstructed or the roof vent cap is damaged, it may affect the performance of your new fan assembly.

6. Remove the Old Fan

Many bathroom fans are held in place with a few screws that secure them to a mounting bracket or on the ceiling joists. To take out the old vent fan, remove the vent fan housing. You can use the putty knife to pry away any caulking material around the edges of your previous fan and unscrew these fasteners to expose the fan mechanism. If the fan is connected to ductwork, you must also disconnect it.

7. Remove Old Exhaust Fan Housing

Use a screwdriver to remove the old fan housing and any hardware keeping it in place if you're not replacing it with a similar model. Ensure that each component of the new fan housing is securely fastened and verify its weight-bearing capacity. Carefully inspect the exhaust duct and roof vent cap for damage, cracks, or blockages. If you find any issues with the duct or vent, it's recommended that you replace them to make sure the optimal performance of your new fan assembly.

8. Trace and Cut any Hole Size Adjustment

Making necessary hole size adjustments before installing the new fan housing is essential to avoid errors. You can do this by tracing the size and shape of the new fan housing onto the ceiling using a straightedge and pencil. After tracing, carefully cut the hole using a drywall saw and other essential cutting tools. Ensure the hole is sized to fit the new exhaust fan housing squarely.

9. Install the New Fan

Installing a new bathroom exhaust fan is relatively simple. However, having a professional install a bathroom ventilation fan for you will ensure a proper and efficient job. To install your fan independently, adhere closely to the manufacturer's instructions for that particular model. Additionally, if installing an exhaust fan system for the first time, you must make cuts to fit the fan motor assembly. Please pay attention to the fan's position and ensure it's securely fastened and its wiring correctly connected. Once it's installed and working, install the grille cover.

10. Test the New Bathroom Fan

Always test the fan before using your bathroom again to ensure everything runs smoothly. Begin by switching on the power and waiting a few moments to see if the fan turns on. Take this opportunity to listen closely for any unusual sounds or vibrations. For optimal ventilation and minimal noise and vibration from the fan, it's important to seal the area surrounding the fan assembly to avoid air leakage. It's also crucial to ensure that the new exhaust fan's housing in the attic is well covered.

11. Clean Up

Start by disposing of any packaging, wrappers, and cardboard from the fan installation. Collect all used tools and store them in their correct boxes or storage containers for next time. To finish off, use a damp cloth to wipe down the fan and any surrounding area to remove dirt or dust.

What Are Common Installation Mistakes?

1. Incorrect Selection Of Exhaust Fan Size

The size of the exhaust fan should match the size of the bathroom. Installing a too-small fan won't effectively remove the moisture and odors from the bathroom. A fan that is too large can be noisy and inefficient. Before purchasing an exhaust fan, measure your bathroom's square footage to determine the fan's recommended size. You can also consult an HVAC professional to ensure you're selecting the right fan for your bathroom size.

2. Using A Duct That Is Too Small

To effectively remove moisture from your bathroom, the exhaust fan must be connected to a vent that allows airflow. Often, homeowners make the mistake of using a too-small duct to allow adequate airflow, leading to several consequences. When insufficient airflow occurs, moisture and smell will accumulate in your bathroom, and your ventilation system will be overworked. To avoid this issue, use a duct with the appropriate diameter for your fan.

3. Not Properly Securing The Fan Housing

The fan housing must be securely fastened to the ceiling joists to prevent vibrations and noise during operation. Failing to attach the fan to the ceiling securely can lead to air leakage and reduce efficiency. Also, if left loose and unattached, it could fall off the ceiling, causing property damage and injury. To avoid this, make sure that you use the hardware provided with the fan to secure the housing in place properly. Additionally, check for proper alignment of the ductwork and housing before tightening anything into place.

4. Incorrect Placement

For optimal coverage of the entire bathroom, place the fan in the middle of the space, as close as possible to the source of moisture and odors. Placing it in a corner or against an outside wall can reduce air circulation, resulting in insufficient ventilation and poor performance.

What Are The Benefits Of Installing A New Fan?

1. Improved Air Quality

Bathrooms can get stuffy due to the accumulation of humidity and odors. An exhaust fan helps to improve air quality by removing moisture and unwanted odors, making your bathroom feel fresher. This is particularly useful when guests want to create a welcoming and hygienic environment.

2. Preserve Building Materials

Excessive moisture and humidity can damage building materials like drywall, wood, or metal. A high-quality fan is a proactive measure that can prevent structural damages that can be costly to repair. Removing excess moisture from the air can prevent water damage and preserve your building materials.

3. Enhanced Safety

Preventing the growth of mold and mildew can be achieved by getting rid of excess humidity and moisture. It can also help prevent accidents, such as slips and falls, by keeping the bathroom dry and free of slippery surfaces.

4. Increases Your Home's Value

Installing an exhaust fan is a great way to increase your home's value. Potential buyers will appreciate having a fan in the bathroom when selling your home. It adds value to your home since it shows that you've completed the necessary maintenance and invested in your home's overall comfort and livability.

5. Odor Control

You may have noticed that some bathrooms have a particular smell, especially after a long shower or use. It can be uncomfortable for the home residents and can put off guests. A vent fan can help to control the lingering odors and keep your bathroom smelling fresh and clean.

Proper installation of your bathroom vent fan is vital in ensuring your bathroom ventilation system's efficiency, safety, and longevity. Avoiding the above common mistakes will make the installation process simpler and more effective. Remember to ensure the correct fan size, proper venting, and insulation. Proper wiring and positioning are also crucial, as they help prevent electrical hazards and ensure maximum efficiency. Always seek professional help if you need clarification on any aspect of your bathroom fan installation. Follow these guidelines, and you'll have a healthy and comfortable bathroom.

FAQs on How to Replace a Bathroom Exhaust Fan

1. Is Replacing a Bathroom Exhaust Fan Hard?

The difficulty level of replacing a bathroom exhaust fan depends on a few factors, such as whether you have attic access, the condition of your bathroom ceiling and fan housing, and your experience level with electrical work. Replacing a bathroom exhaust fan is relatively easy for the average DIY homeowner. As long as you have basic handyman experience and all the required materials, replacing a bathroom exhaust fan can be done in a few hours.

2. Can You Replace a Bathroom Exhaust Fan Without Attic Access?

You can replace a bathroom exhaust fan without attic access, but it can be more challenging. You'll need to remove the existing fan unit from below the ceiling without access. It requires cutting a hole in the ceiling drywall to access the fan housing, so measure carefully before making any cuts. Additionally, you may need to use electrical wire connectors and longer wires to attach the fan securely.

3. Can I Replace a Bathroom Fan on My Own?

Resa bathroom fan is a relatively simple project that any homeowner can complete independently. With the right materials and instructions, you should be able to replace your bathroom fan without help from a professional safely. Before beginning your project:

  • Have all the necessary parts and carefully read the manufacturer's instructions.
  • Wear proper safety gear to protect yourself and take your time to avoid any errors.
  • Make sure all power is disconnected before starting the job.

4. Do I need to Hire a Professional?

While it is possible to replace a bathroom exhaust fan independently, hiring an experienced professional electrician can warranty the job will be done correctly and safely, especially if you feel uncomfortable attempting the repair yourself or lack the skill set. A qualified electrician will have the right tools and materials to install your fan quickly, as well as be able to detect any potential wiring problems. They can identify if you need a larger exhaust fan or additional ventilation for optimal performance. When choosing a professional, make sure you research their background and qualifications. Choose an electrician with experience for the best results.

5. Do I need to Replace the Whole Exhaust Fan?

If certain parts of your fan are damaged, you may not have to replace the whole unit. For instance, if only the motor or grille is damaged and the wiring and housing are fine, you can replace those parts instead. However, replacing the entire unit is ideal if your fan is too damaged to fix. Replacing the entire fan will ensure optimal performance and airflow. Inspecting the surrounding area for any signs of damage before beginning the replacement process is essential.

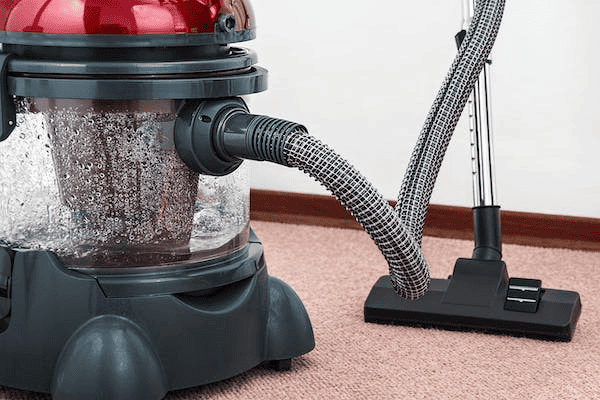

6. How Do I Maintain and Clean My Vent Fan?

An exhaust fan needs regular cleaning to remove dirt and debris to function optimally. Cleaning your fan is relatively easy and can be done using a vacuum to remove dust buildup on the grilles and blades. Use a mild solution of soap and water to wash the grilles thoroughly. Avoid saturating the motor or using abrasive cleaners. Additionally, replace your fan at least every ten years or when its performance begins to decline. A declining performance may include noise while running or increased humidity levels in the bathroom.

7. How Loud Will My Exhaust Fan Be?

The noise level from your exhaust fan will depend on the fan's motor, blade quality, and the exhaust duct size. However, most exhaust fans produce sound levels of between 0.5 and 3.0 sones. To put this into perspective, 0.5 sones is a quiet whisper, while 3.0 sones are more like a conversation. Look for a fan that has a low sone rating to ensure it does not produce unnecessary noise.
